Modular panels for clean rooms and critical environments
Plasteurop manufactures custom sandwich panels for partitions and ceilings in controlled atmosphere environments. Our solutions meet the needs of ISO 5 to 8 clean rooms, containment areas, dry rooms, and sensitive industrial environments.
Solutions
PANELS SUITABLE FOR EVERY APPLICATION
Available with a rock wool core or an aluminum honeycomb core, our panels provide thermal and acoustic insulation, mechanical strength, and ease of cleaning. HPL, PET, PVC, or aluminum finishes guarantee hygiene and durability.
SB05 LR 130 PANEL
Mineral wool core density 130 kg/m3 – Wall and ceiling installation.
SB05 NIDA PANEL
19 mm mesh honeycomb core, density 20 kg/m3 – Wall and ceiling installation.
SB05 NIDA PANEL HD
19 mm mesh honeycomb core, density 27 kg/m3 – Wall and ceiling installation.
NIDA LINING PANEL
19 mm mesh honeycomb core, density 20 kg/m3 – Wall lining installation only.
PLASTERBOARD LINING PANEL
12,5 mm thick M0-rated plasterboard core – Wall lining installation only.
CF09 PARTITION WALL
EI120 rated insulating core of high-density volcanic rock fibre 165 kg/m3 – Wall installation only.
CF12 PARTITION WALL
EI180 rated insulating core of high-density volcanic rock fibre 165 kg/m3 – Wall installation only.
PF09 CEILING PANEL
EI60 rated insulating core of volcanic rock fibre, density 130 kg/m3 – Ceiling installation only.
PF12 CEILING PANEL
EI120 rated Insulating core of volcanic rock fibre, density 130 kg/m3 – Ceiling installation only.
Contact us for more information about our products
COMPLIANCE WITH THE STRICTEST STANDARDS
Our technical panels comply with ISO 14644, GMP, BPF, and Euroclass standards and can incorporate specific options: antistatic panels (ESD/DCE), renovation panels, removable panels, and walkable ceilings.

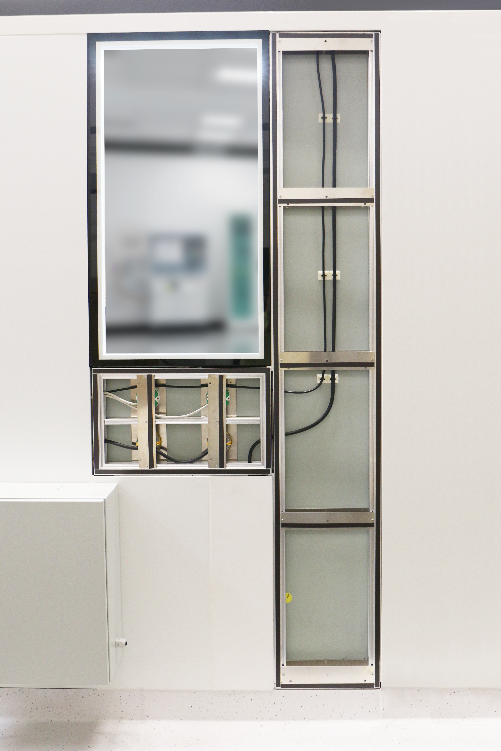

SB05 NIDA CAVITY PANEL
19 mm mesh honeycomb core, density 20 kg/m3. One or two specific jambs to pass cables – Wall installation only.
Contact us for more information about our products
